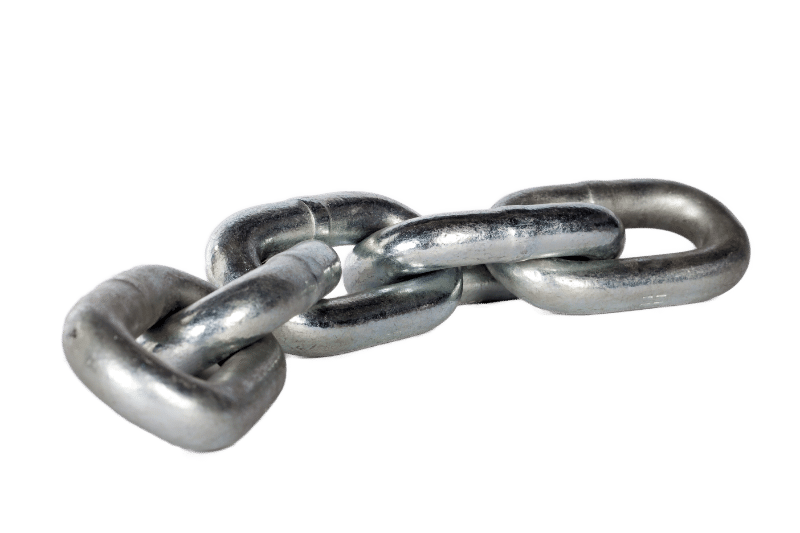

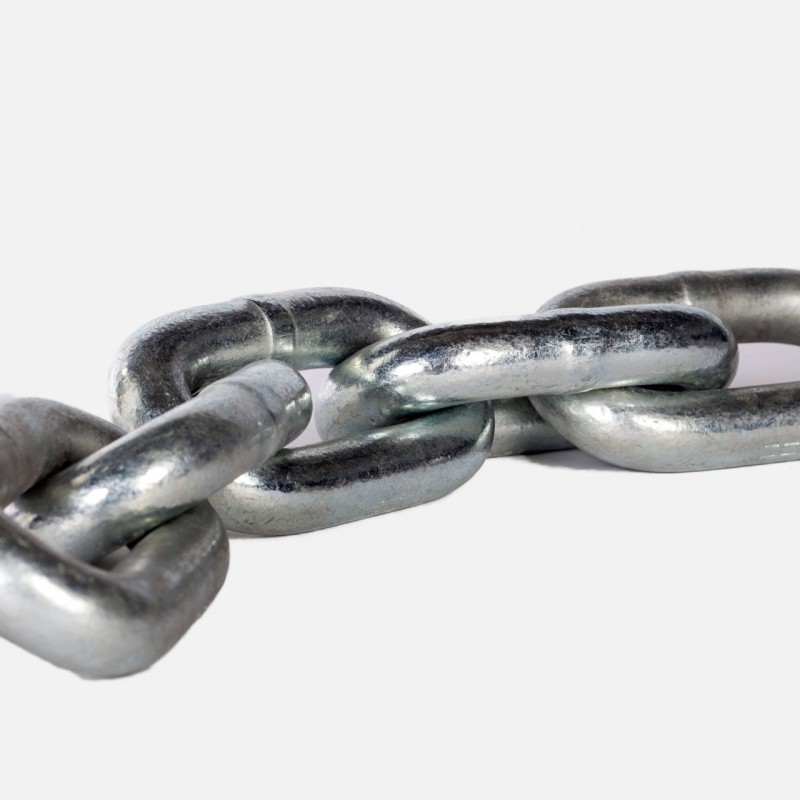

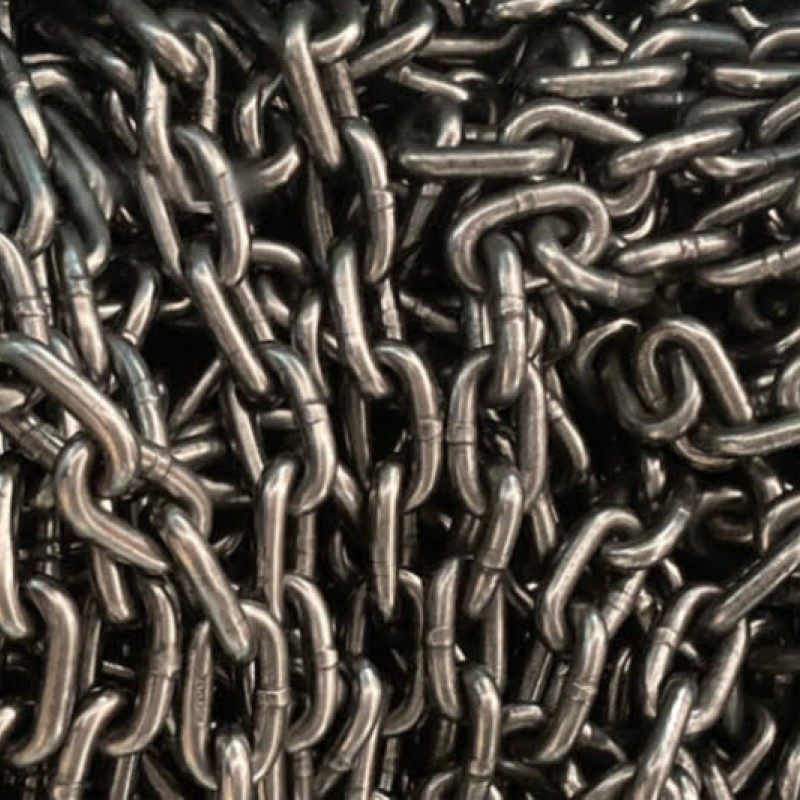

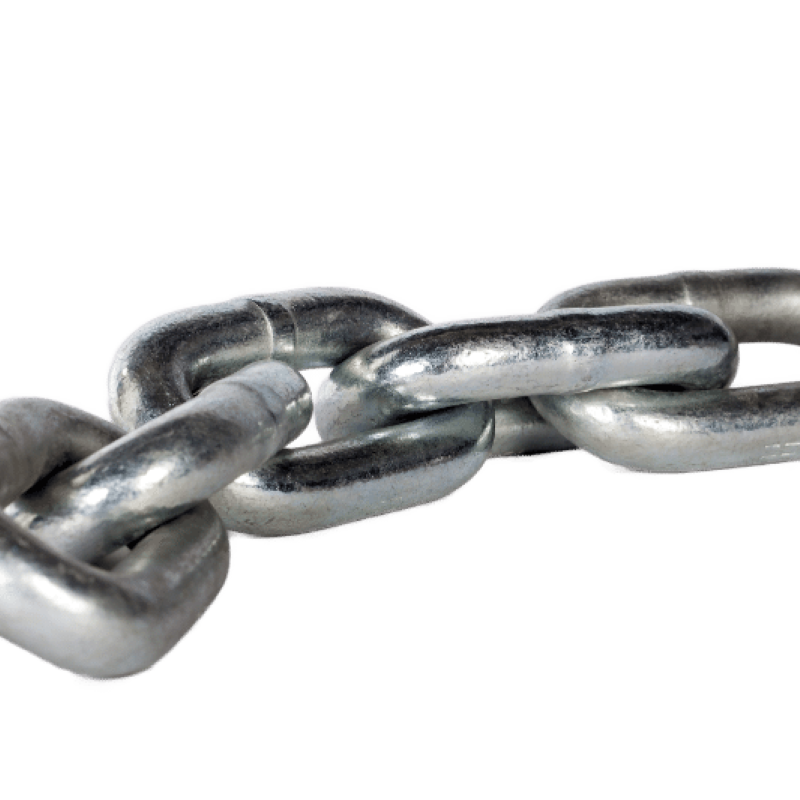

Round steel chains
Highly wear-resistant
Highly wear-resistant round steel chains for:
-horizontal conveyor systems (tray conveyor)
-vertical conveyor systems (elevators)
Eg as a chain end system according to DIN 764 and 766 and chain shackle according to DIN 745 and DIN 5699. You can find our standard dimensions and designs below.
-
Materials | materials
Remunerated qualities:
- Manganese steel
- CrNi / CrNiMo steel
Case-hardened qualities:
- Manganese steel
- CrNi / CrNiMo steel
Chain ends
Chain end DIN 764
Nominal thickness x division (mm) DIN Weight (kg / m) 10 x 35 764 2,0 16 x 56 764 3,5 18 x 63 764 5,2 20 x 70 764 6,5 18 x 63 764 8,2 23 x 80 764 11,0 26 x 91 764 14,0 28 x 98 764 16,5 30 x 105 764 19,0 33 x 115 764 19,0 36 x 126 764 26,5 39 x 136 764 31,0 42 x 147 764 36,0 Chain end DIN 766
Nominal thickness x division (mm) DIN Weight (kg / m) 10 x 28 766 2,3 16 x 45 766 5,8 18 x 50 766 7,4 20 x 56 766 9,0 23 x 64 766 12,0 26 x 73 766 15,0 28 x 78 766 18,0 30 x 84 766 20,0 33 x 92 766 25,0 36 x 101 766 29,0 39 x 109 766 34,0 42 x 118 766 40,0 Other dimensions
Nominal thickness x division (mm) 14 x 50 16 x 64 19 x 75 19 x 75 22 x 86 26 x 100 30 x 120 34 x 136 38 x 144 Chain hanger

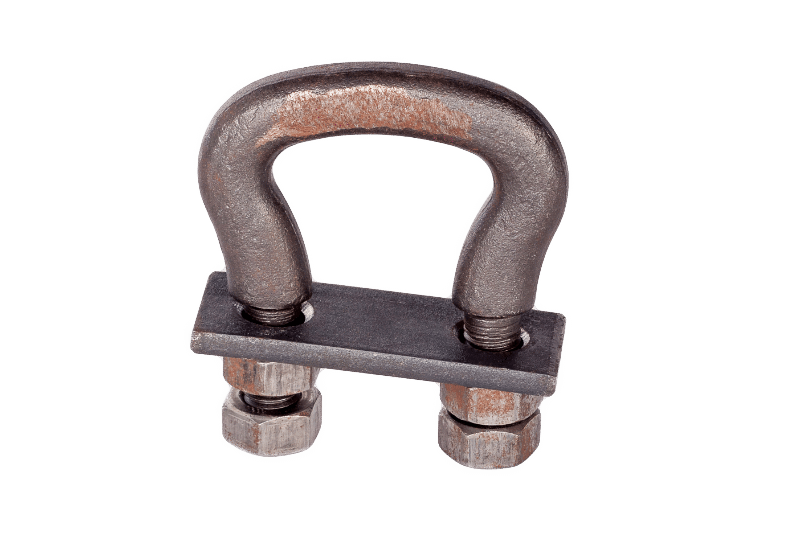

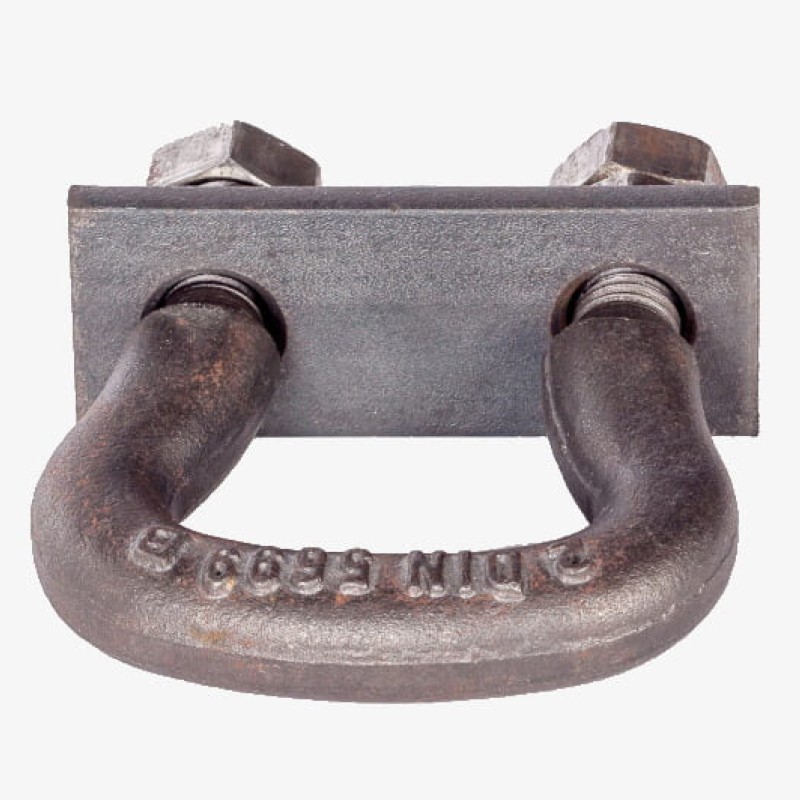

Chain shackle DIN 745 & DIN 5699
division (mm) DIN chain Weight (kg / piece) 35 764 / 766 0,21 45 764 / 766 0,34 56 764 / 766 0,59 63 764 / 766 0,85 70 764 / 766 1,25 80 764 / 766 1,50 91 764 / 766 2,36 105 764 / 766 3,06 126 764 / 766 5,40 136 764 / 766 7,81 147 764 / 766 8,83 Flat locks
Nominal thickness (d) x division (t) (mm) Weight (kg / piece) 16 x 64 0,5 19 x 75 0,8 22 x 86 1,9 26 x 100 2,4 30 x 120 3,2 34 x 126 4,2 34 x 136 4,2 38 x 144 5,2 Square locks
Nominal thickness (d) x division (t) (mm) Weight (kg / piece) 14 x 50 0,6 16 x 64 1,1 19 x 75 2,0 22 x 86 2,8 26 x 100 4,6 30 x 120 8,1 34 x 136 11,8 Application
- Scraper conveyor
- Chain conveyor
- Bucket elevators
- Single-line conveyor
- Conveyor systems
- Bulk conveyor
- Etc.
Industry sectors
- Plant construction
- Glass industry
- Timber industry
- Lime works
- Coal power plants
- Incineration
- Cement industry
- Sugar industry
- Etc.
EQUIPMENT
We are happy to offer you as chains equipment separate Plug-in driver flat and round, chain locks, Sprockets (internally toothed, pocket toothed, toothless), Single teeth as well as guide rollers on.
