Cerachem™ | Ceramic Fibre Mats

Cerachem™ | Ceramic Fibre Mats

Cerachem™ has excellent chemical stability and is made from spun fibres called Cerachem™ ceramic fibres. The blankets have excellent dimensional stability before and after temperature application.


TEMPERATURE RESISTANCE
1425°C KFT
MATERIAL
Ceramic fiber | Aluminum silicate wool
PRODUCT TYPE
Mat (blanket)
Thickness (mm)
6mm | 10 mm | 13mm | 19mm | 25mm | 38mm | 50mm
Density / volume weight (kg / m³)
64 kg / m³ | 96 kg / m³ | 128 kg / m³ | 160 kg / m³

Refractory Refractory

Subcategory: Fiber blankets

Tags: Mat (blanket)

Share:

  • Icon box checked

    Strength

    Excellent handling / processing strength.

    Icon box checked

    Heat resistance

    Resistance to temperature changes & resistance to chemicals.

    Icon box checked

    Thermal counductivity

    Low thermal conductivity & heat storage.

    CHARACTERISTICS

    Cerachem™ has excellent chemical stability and is made from spun fibres called Cerachem™ ceramic fibres. The blankets have excellent dimensional stability before and after temperature application. They have excellent thermal insulation properties as well as very good acoustic insulation properties. The wide range of densities and thicknesses available allows for tailored thermal insulation in almost any application. Cerachem™ is suitable for classification temperatures up to 1425°C.

    APPLICATION

    • Excellent thermal insulation properties
    • Resistant to most chemicals
    • Excellent thermal stability
    • Low heat storage
    • Firm and at the same time elastic mats
    • Resistance to thermal shock
    • Good sound absorption

    PRODUCT TYPE

    Mats (blankets) made of high temperature wool are needled lightweight mats made of ceramic (ASW/RCF) high temperature wool (HTW) and provide an effective solution for a wide range of thermal insulation applications. They are characterized by excellent insulating properties, high resistance to chemicals, elasticity and dimensional stability. They are exclusively inorganic and therefore do not generate smoke or fumes when exposed to heat. They are available in a wide range of densities and thickness combinations, making them one of the most versatile product groups on the market.

    MATERIAL

    High temperature wool made of ceramic fibersalso known as ASW (Aluminum Silicate Wool) or RCF (Refractory Ceramic Fibre), have been used for years as the standard fibre type for insulation solutions up to 1425 °C.

    Morgan Thermal Ceramics

    Morgan's development of low biopersistence fibers has led to a revolution in the use of fibers for high temperature insulation applications over the last 20 years. Our patented Superwool products, manufactured using ISO 9002 certified processes, are made from alkaline earth silicate (AES) composition fibers uniquely engineered to provide benefits in high temperature insulation applications.

    Cerablanket™ | Ceramic Fibre Mats

    Produktvariationen

    Cerablanket™ | Ceramic Fibre Mats

    Roll goods

    Fiber mats are sold as roll goods as standard. The roll length depends on the selected thickness. As a standard width, we have 610mm wide rolls from stock. Double widths are available on request.

    More
    Cerablanket™ | Ceramic Fibre Mats

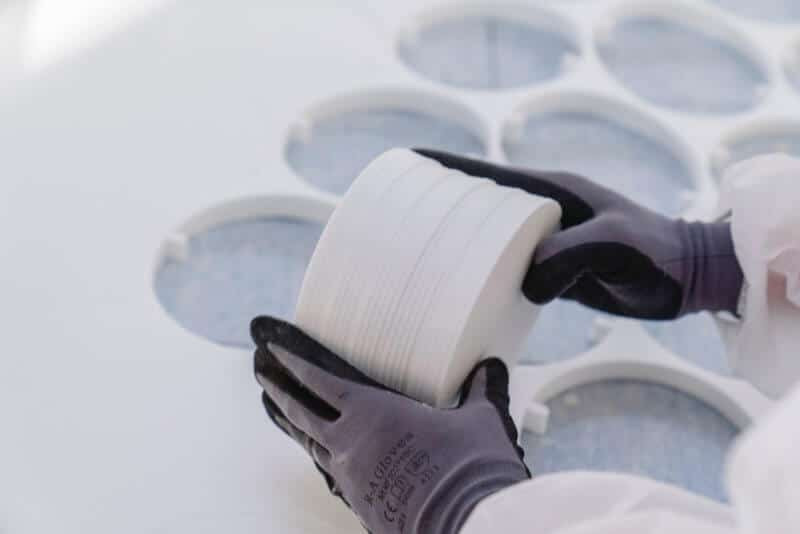

    Moldings

    We manufacture molded parts according to your specifications. The roll goods are made using

    • Water jet

    • Punching

    • Plotting

    brought into the right shape for you.

    More
    Cerablanket™ | Ceramic Fibre Mats

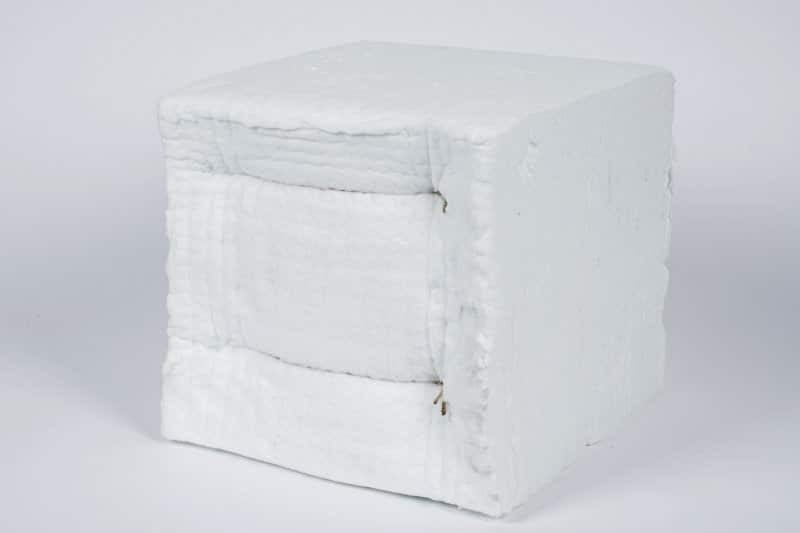

    Fiber modules

    We manufacture fiber modules according to customer specifications that are designed for the insulation requirements of industrial ovens, kilns and heating devices.

    More

    TECHNICAL DETAILS

    Chemical Analysis

    Al2O3 46,0
    SiO2 54,0
    ZrO2 -
    Other Tracks
    Physical Properties
    colour White
    Classification temperature (°C) 1315
    Continuous operating temperature (°C) 1177
    Specific heat capacity (Kj/kg*K) 1,13
    Permanent linear shrinkage (%) after 24 hours
    1000 °C 1,5
    1100 °C 2,2
    1200°C 3
    Volume weight (kg / m³) 64 96 128 160
    Thermal conductivity (W / mK)
    200°C 0,07 0,06 0,06
    400°C 0,12 0,11 0,10 0,09
    600°C 0,20 0,16 0,15 0,13
    800°C 0,30 0,23 0,20 0,18
    1000°C 0,43 0,32 0,27 0,25
    Tensile strength (kPa) 30 70 90 110
  • Downloads

    Data sheet Cerablanket™ | Cerachem™

    Product properties, typical applications and availabilities.

    Download

    KS Technologie product catalog

    Refractory | Seals | Foundry supplies | Conveyor chains | Chesterton

    Download

  • KS Kneissl & Senn Technologie

    KS Kneissl & Senn Technologie

    KS Kneissl & Senn Technologie GmbH has been producing insulation materials and seals for a wide variety of applications up to a temperature range of 1600 ° C since 2001. A diverse machine park (CNC 5-axis milling, plotting, punching, sewing, water jets, vacuum forming, etc.) enables us to do a variety of things Materials in shape for you bring to. The main materials include materials such as: glass fibers, Aramid fibers, mineral fibers, Biosoluble fibers, Ceramic fibers, silicate fibers, Vermiculite, Calcium silicate, Microporous materials, Rubber Material (Rubber, silicone, Silicone sponge, etc.), etc.

    Seit 2009 ist der Betrieb nach der ISO9001 zertifiziert, aktuell lt. Normenrevision 2015.
