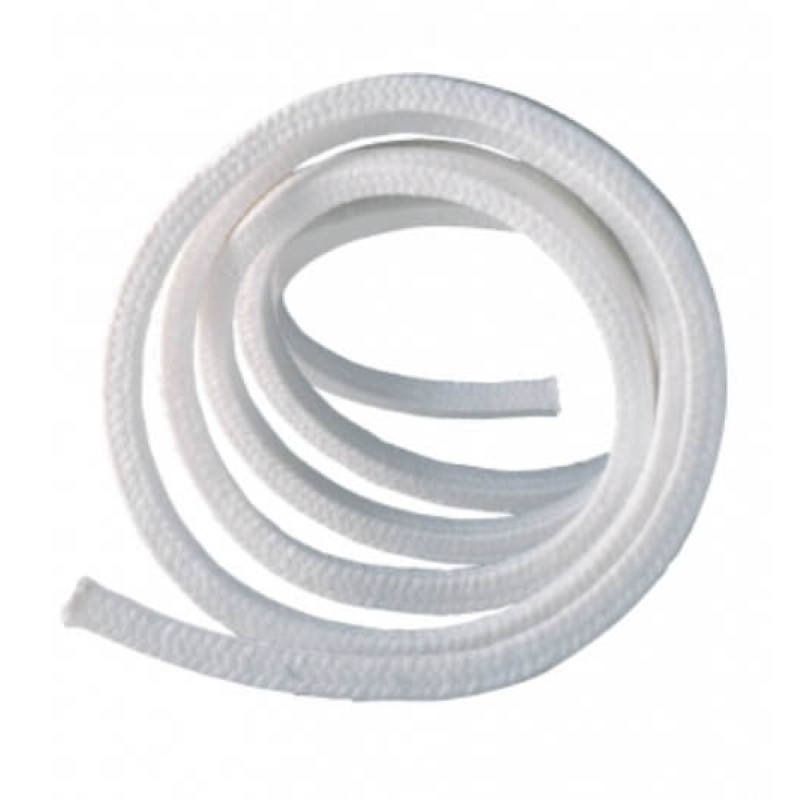

Stuffing box packings
Stuffing box packings are ideal for sealing rotating shafts, valve spindles and rotary unions. It is a low-cost alternative to mechanical seals.
- Material
- Coral/Graphie | PTFE | PTFE/Aramide | PTFE/Graphite | Solid matter | For food sector | Chemical resistant | Other materials
-
Seal
Sealing of rotating shafts, valve spindles and rotary unions.
Cost efficient
Stuffing box packings are a cheaper alternative to mechanical seals.
Various materials
Available in various materials (graphite, PTFE, solid, etc.).
CHARACTERISTICS
Stuffing box packings are ideal for sealing rotating shafts, valve spindles and rotary unions. It is a low-cost alternative to mechanical seals. Unlike mechanical seals, stuffing box packings can be retightened with the stuffing box gland.

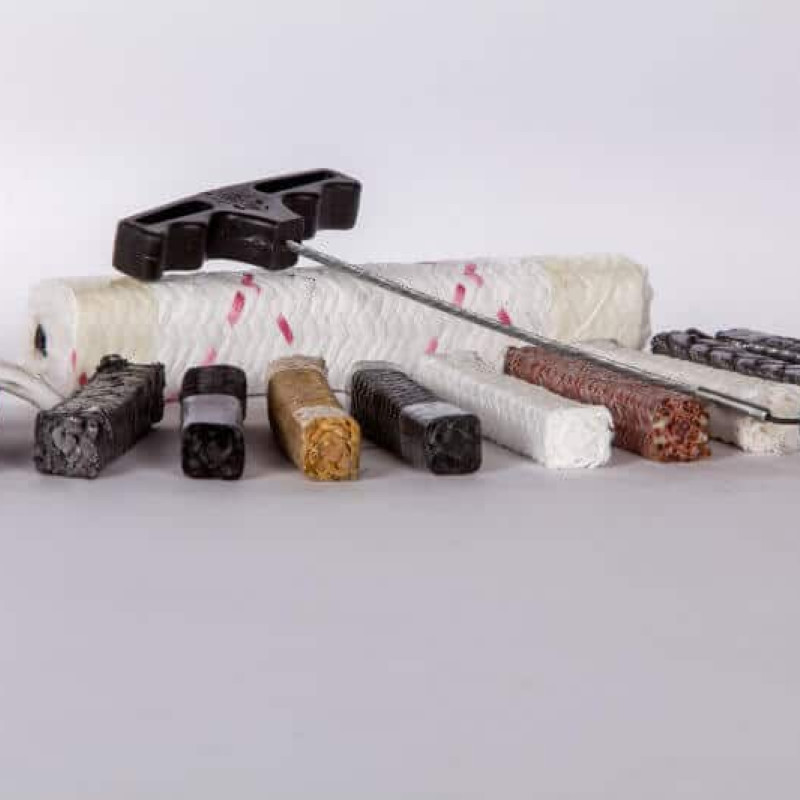

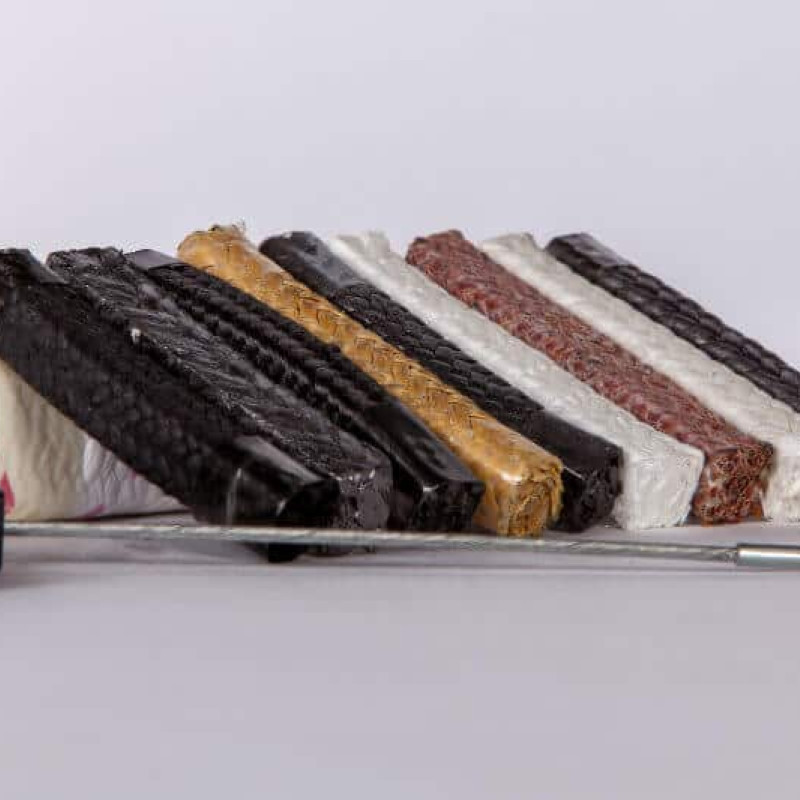

We supply stuffing box packings in various materials: Carbon/graphite, PTFE, PTFE/aramide, PTFE/graphite, solid, for the food sector, chemical-resistant and other materials on request.
Benefits
- Sealing of rotating shafts, vetil spindles, rotary unions
- Inexpensive alternative to mechanical seals
- Can be traced with the stuffing box glasses
- Various materials: carbon/graphite, PTFE, PTFE/aramide, PTFE/graphite, solid, for the food industry, chemical resistant, etc.
- Other materials also available on request
Materials

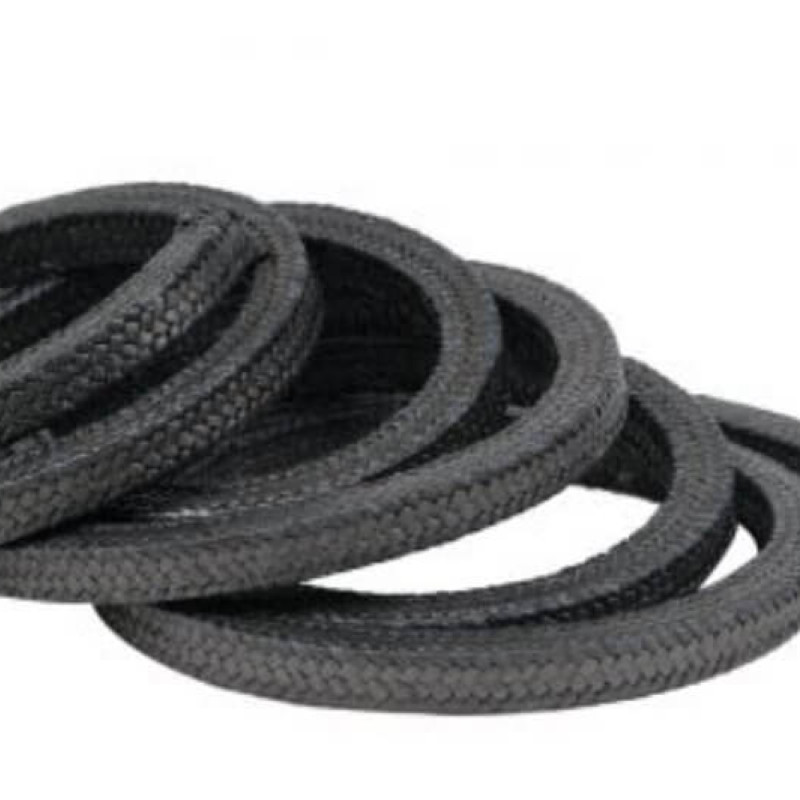

Coal | Graphite
Very good universal application
Temperatures up to + 650°C
Speeds up to 30 m/sPTFE
Chemical resistance
Temperatures up to + 280°C
Speeds up to 25 m/sPTFE | Aramid
High resistance to abrasion
Temperatures up to + 280°C
Speeds up to 25 m/sPTFE | Graphite
Chemical resistance
Low heat generation
Temperatures up to +260°C
Speeds up to 18 m/sSolid matter
Slurry seal applications
C.hemical resistance
Temperatures up to + 260°C
Speeds up to 18 m/sFood sector
Use in the drinking water and food sector, as well as pharmaceutical products
Chemical resistant
Dense braided fabric
C.hemical resistance
Temperatures up to + 260°C
Speeds up to 18 m/sOther
Other materials on request
-
