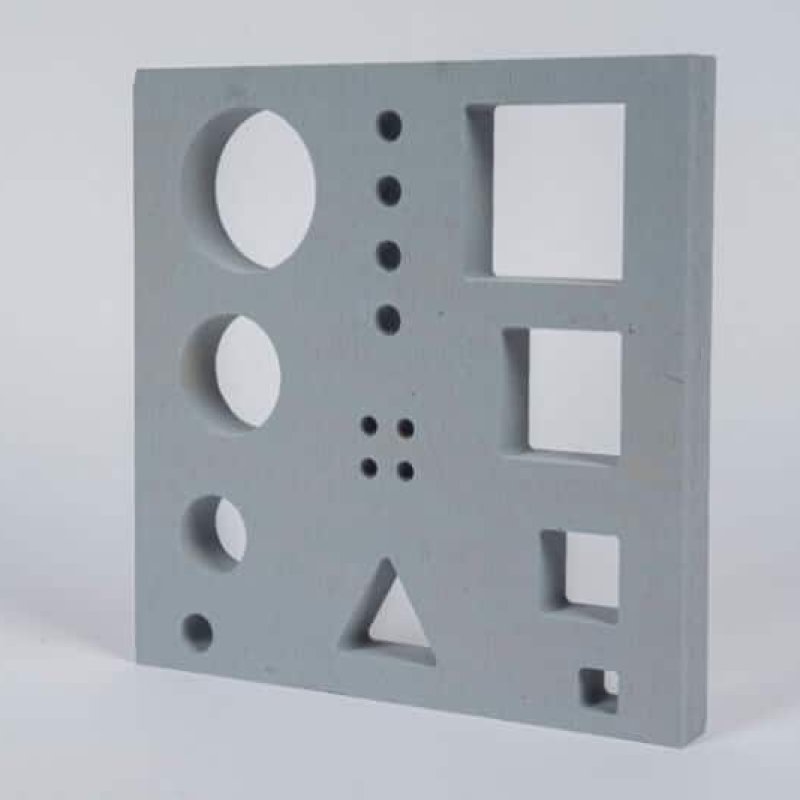

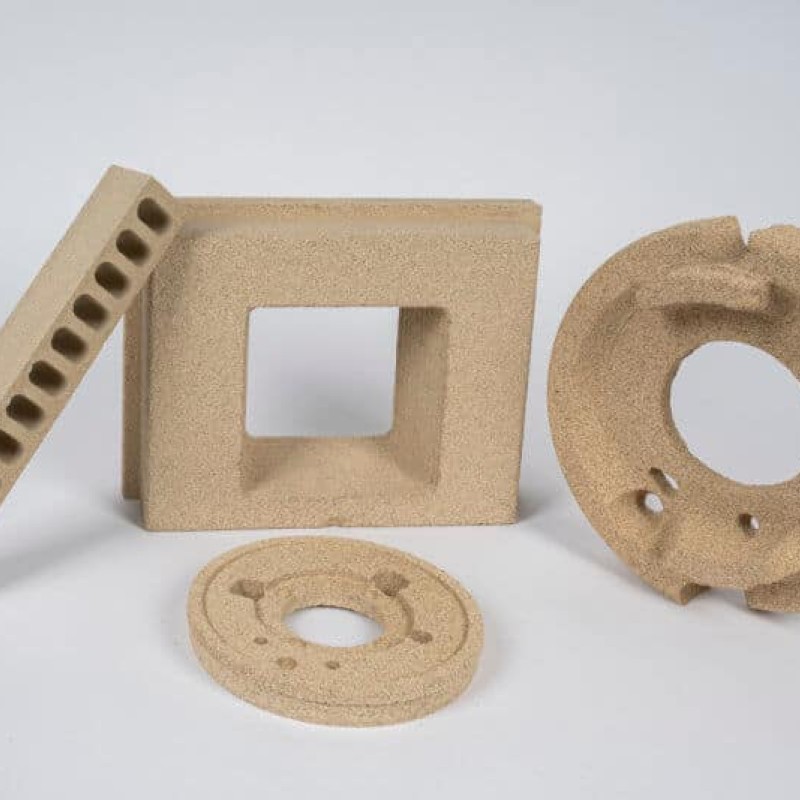

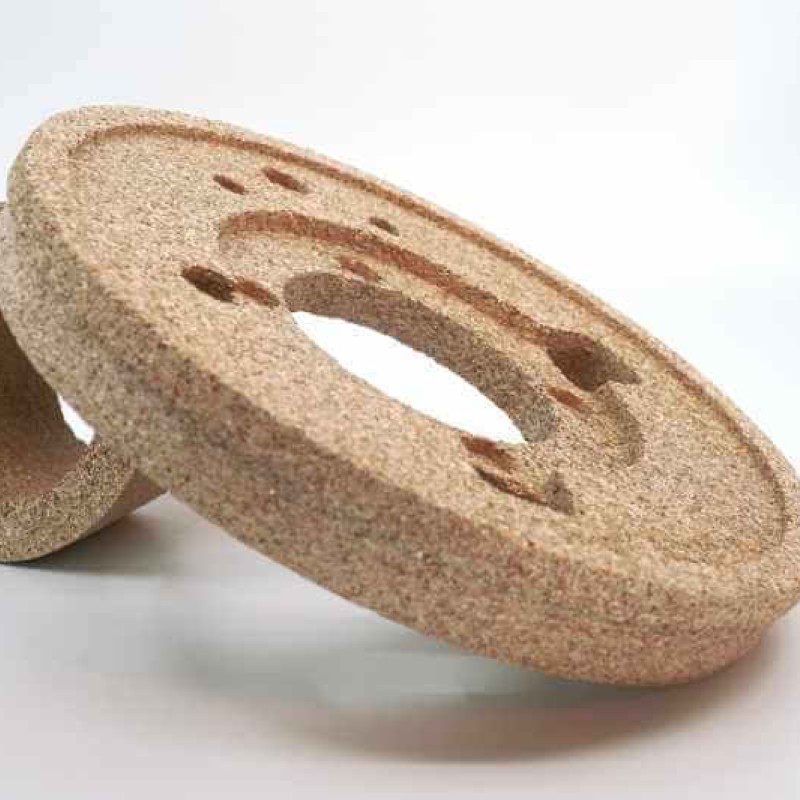

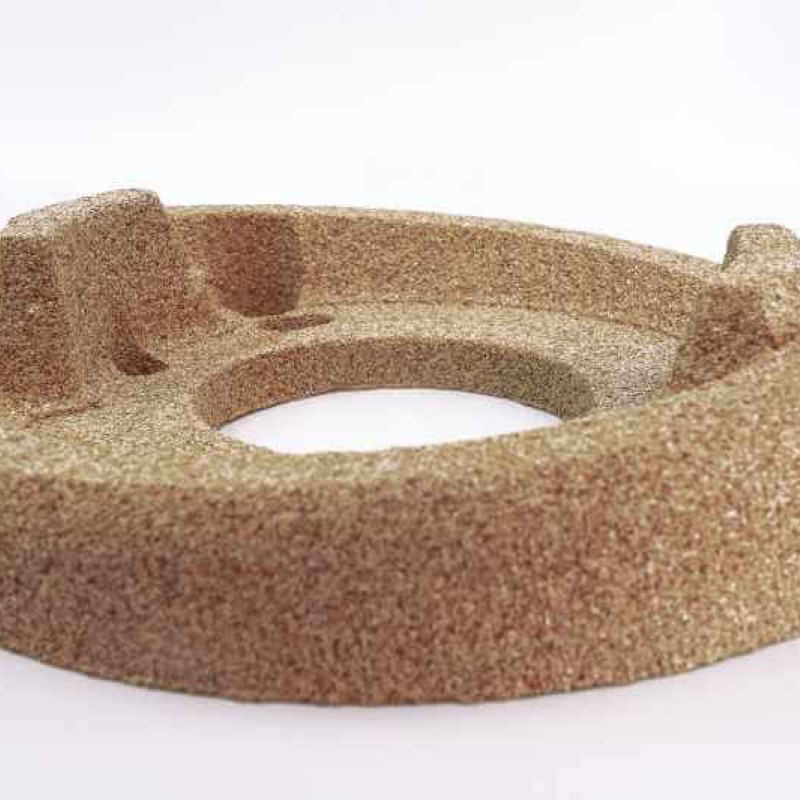

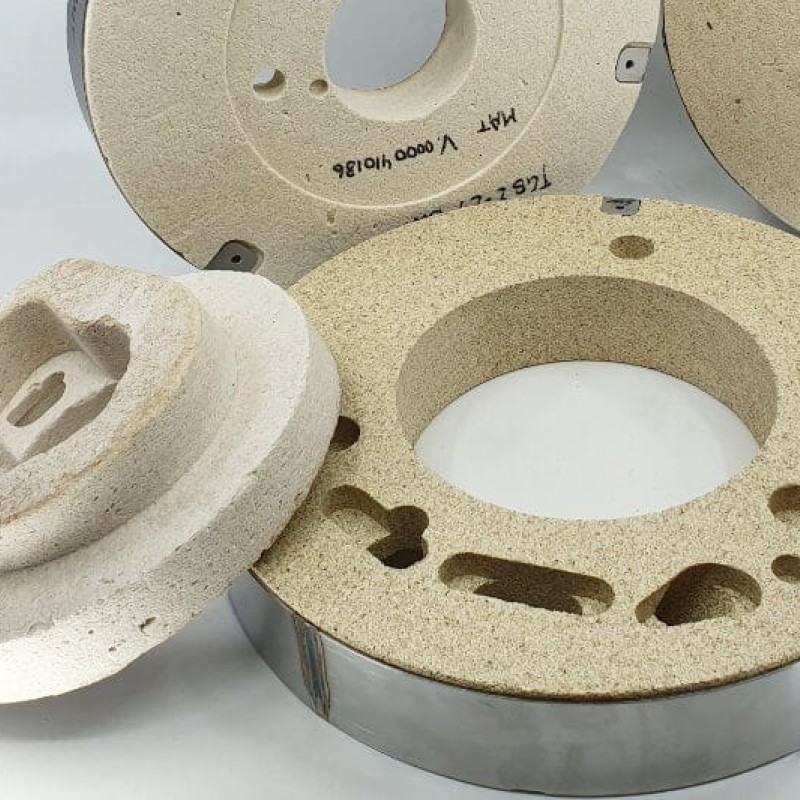

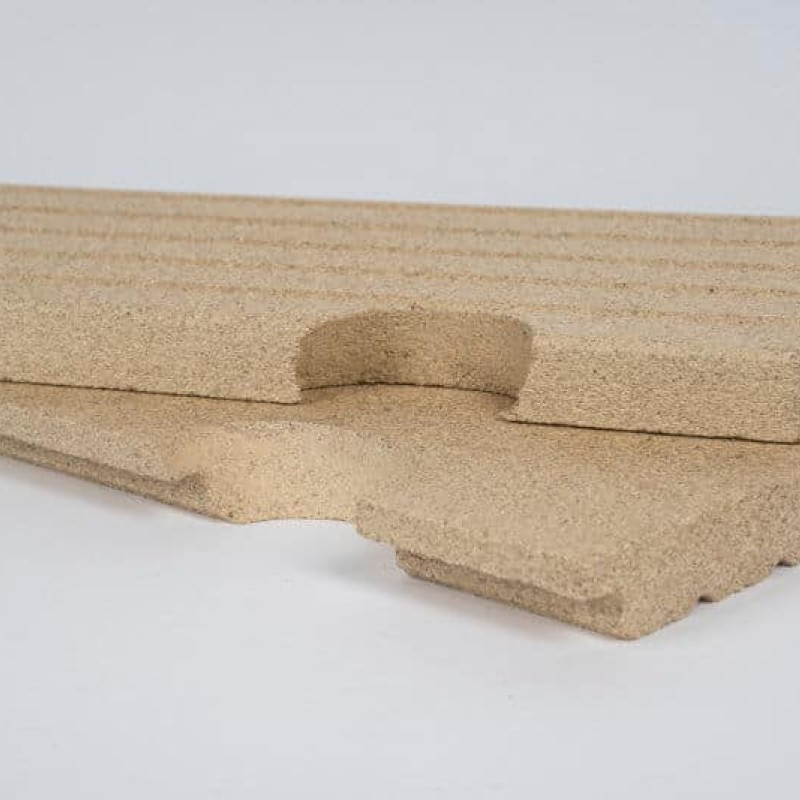

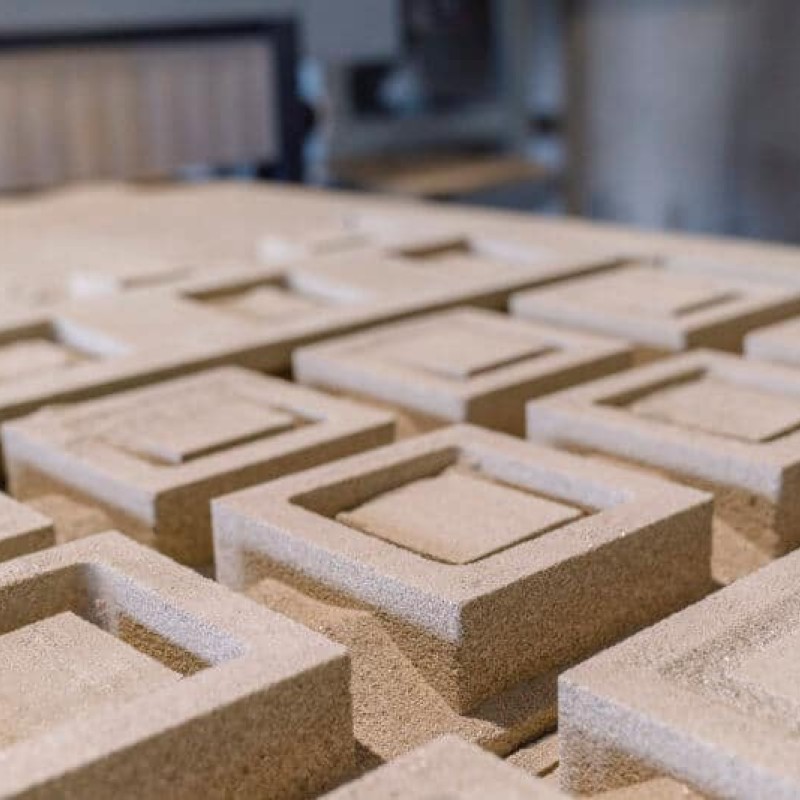

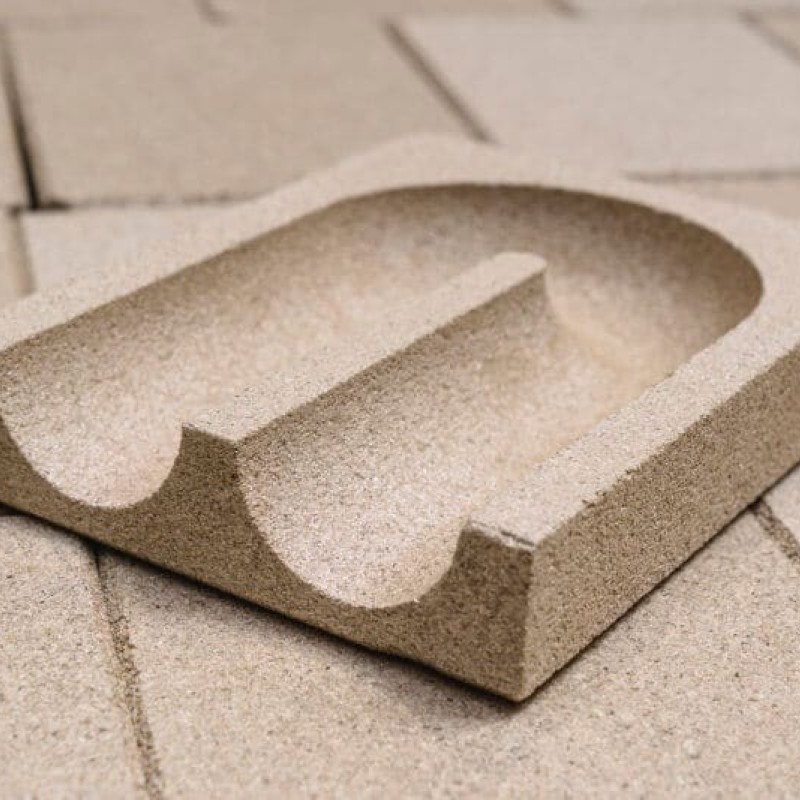

Vermiculite CNC molded parts
Vermiculite CNC molded parts from our own production are according to your specific specifications: CNC milled, CNC drilled and CNC sawn.
- PRODUCT VARIATIONS
- CNC machined | CNC drilled | CNC sawn
-
Cost-oriented
Technically excellent and cost-oriented solution.
Nontoxic
Light, non-toxic, fiber-free, odorless and acid-resistant.
Refractory
Depending on the product variation, application temperatures up to 1100 ° C.
TECHNISCHE DETAILS
CHARACTERISTICS
Application temperature 1100°C Schemltz temperature > 1300°C Standard panel thickness tolerance +/- 1mm Standard length / width tolerance +/- 2,5mm Linear post-shrinkage Aprox. 1% Coefficient of thermal expansion 11.0 x 10⁶ K¹ Loss on ignition 1025°C: 7% HS Tariff No. 6809.90.00 colour Sand CHEMICAL AVERAGE ANALYSIS
SiO2 46,0% TiO2 0,7% Fe2O3 5,5% Al2O3 7,0% MgO 19,0% CaO 3,5% Na2O 0,2% K2O 10,0% KS VIREboard 375 KS VIREboard 475 KS VIREboard 600 KS VIREboard700 Volume weight 375 kg/m3 475 kg/m3 600 kg/m3 700 kg/m3 Cold compressive strength 1,3 N/mm2 2,5 N/mm2 4,2 N/mm2 4,5 N/mm2 Flexural strength 0,3 N/mm2 0,8 N/mm2 1,6 N/mm2 2,0 N/mm2 Total porosity 85% 81% 76% 74% Thermal conductivity 200°C 0,12 0,14 0,16 0,19 400°C 0,15 0,17 0,18 0,20 600°C 0,16 0,19 0,20 0,21 800°C 0,19 0,20 0,22 0,22 CHARACTERISTICS
Vermiculite CNC molded parts from our own production are according to your specific specifications: CNC milled, CNC drilled and CNC sawn. By default, we can process the following drawing files from you: DXF®, DWG®, Solidworks®, STEP®, SolidEdge® etc.
Beefits
- Technically excellent
- Cost-oriented solution
- Light
- Nontoxic
- Fiber free
- Odorless
- Acid resistant
- Refractory
-
Downloads
Data sheet Vireboard VB1100-375
Product properties, typical applications and availabilities.
Data sheet Vireboard VB1100-475
Product properties, typical applications and availabilities.
Data sheet Vireboard VB1100-600
Product properties, typical applications and availabilities.
Data sheet Vireboard VB1100-700
Product properties, typical applications and availabilities.
KS Technologie product catalog
Refractory | Seals | Foundry supplies | Conveyor chains | Chesterton
-
KS Kneissl & Senn Technologie

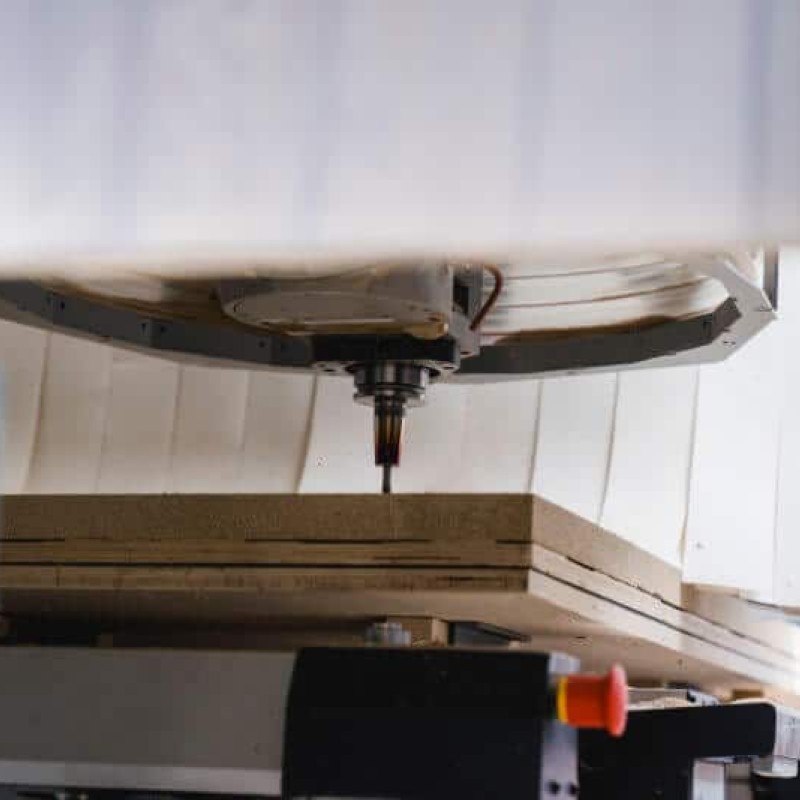

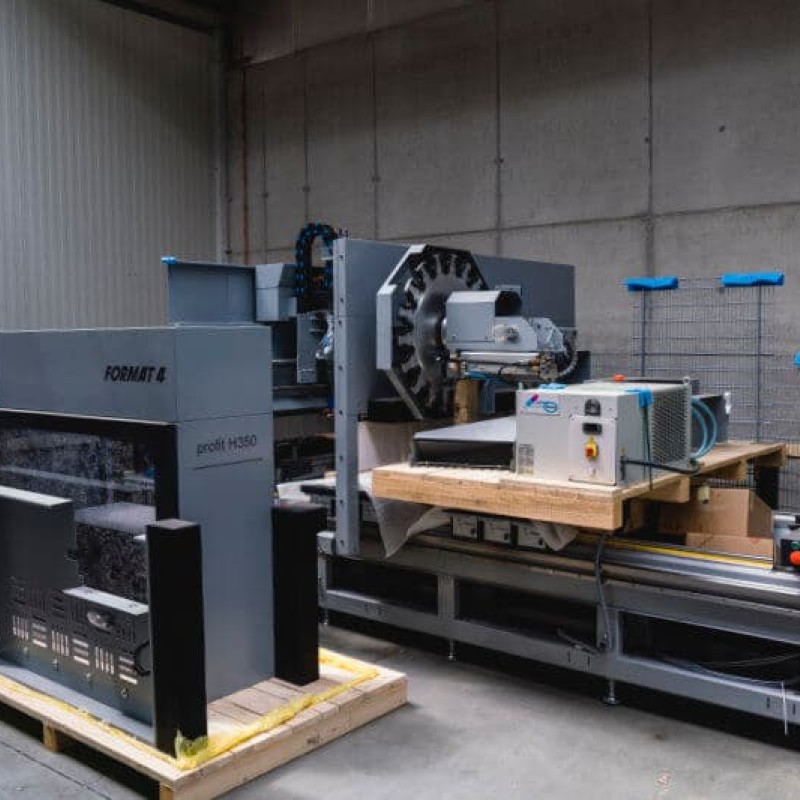

KS Kneissl & Senn Technologie GmbH has been producing insulation materials and seals for a wide variety of applications up to a temperature range of 1600 ° C since 2001. A diverse machine park (CNC 5-axis milling, plotting, punching, sewing, water jets, vacuum forming, etc.) enables us to do a variety of things Materials in shape for you bring to. The main materials include materials such as: glass fibers, Aramid fibers, mineral fibers, Biosoluble fibers, Ceramic fibers, silicate fibers, Vermiculite, Calcium silicate, Microporous materials, Rubber Material (Rubber, silicone, Silicone sponge, etc.), etc.
Seit 2009 ist der Betrieb nach der ISO9001 zertifiziert, aktuell lt. Normenrevision 2015.
