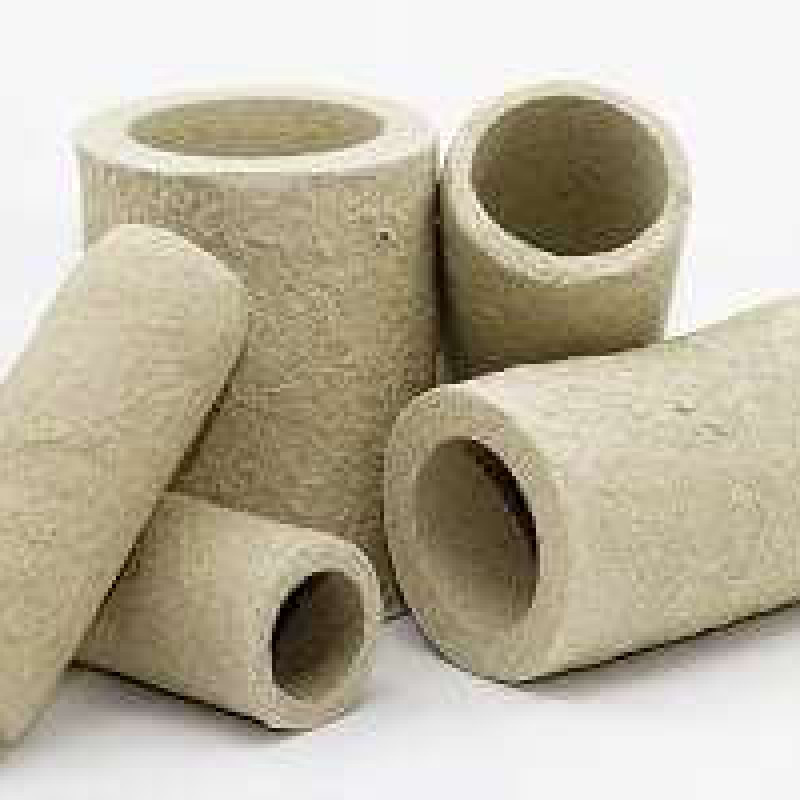

Round insulating feeder

KS round insulating feeders (RO) made of mineral fiber are characterized by high strength and great dimensional accuracy for the inside diameters.


TEMPERATURE RESISTANCE
Up to 800 ° C
MATERIAL
Mineral fiber
PRODUCT TYPE
Insulating feeder
Diameter (D)
20 | 25 | 30 | 35 | 40 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 90 | 100 | 120 | 140 | 150 | 175 | 200 | 250 | 338
Height (L)
100 | 150 | 150BK | 16x150BK | 25x150BK | 200 | 225 | 300 | 500

  • Icon box checked

    Aluminum sand casting

    Suitable for aluminum sand casting.

    Icon box checked

    Up to 800 ° C

    Resistant up to 800 ° C.

    Icon box checked

    Unclassified

    Unclassified material.

    CHARACTERISTICS

    KS round insulating feeders (RO) made of mineral fiber are characterized by high strength and great dimensional accuracy for the inside diameters. Compared to natural feeders, with a wall thickness of 8mm you have a setting time that is 2.2 - 2.4 times longer. The use of harmless mineral fibers means that no special measures need to be taken with regard to occupational safety. Various shapes and standard sizes are available from stock for every application.

    Benefits

    • Suitable for aluminum sand casting
    • Resistant up to 800 ° C
    • Unclassified material
    • High strength and great dimensional accuracy
    • Longer setting time
    • Use of harmless mineral fibers

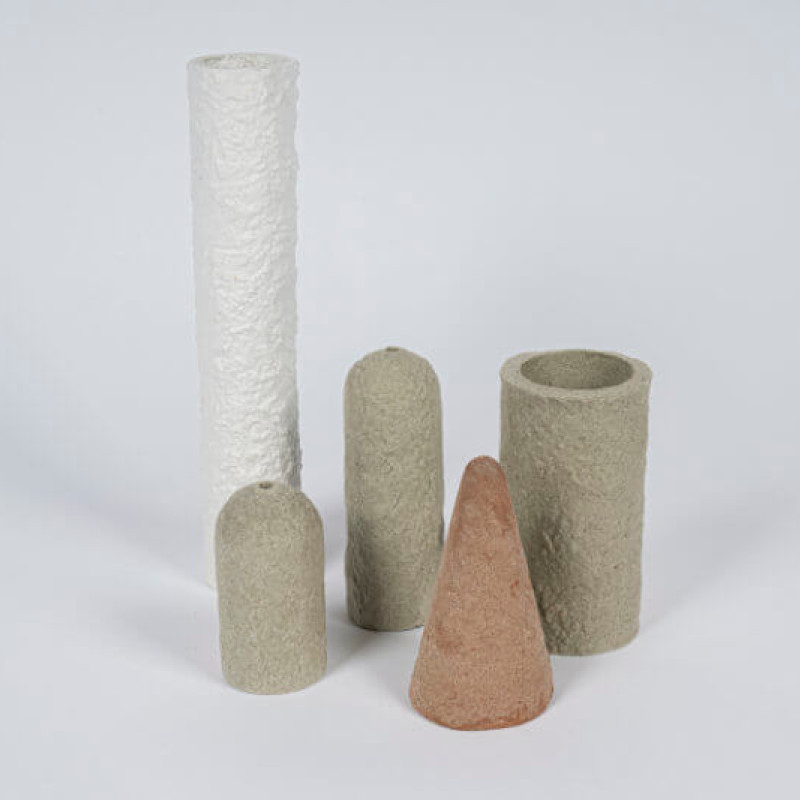

    • Different shapes and standard sizes
  • Downloads

    Catalog KS Kneissl & Senn Technologie GmbH

    Current product catalog from KS Kneissl & Senn Technologie GmbH.

    Download

  • KS Kneissl & Senn Technologie

    KS Kneissl & Senn Technologie

    KS Kneissl & Senn Technologie GmbH has been producing insulation materials and seals for a wide variety of applications up to a temperature range of 1600 ° C since 2001. A diverse machine park (CNC 5-axis milling, plotting, punching, sewing, water jets, vacuum forming, etc.) enables us to do a variety of things Materials in shape for you bring to. The main materials include materials such as: glass fibers, Aramid fibers, mineral fibers, Biosoluble fibers, Ceramic fibers, silicate fibers, Vermiculite, Calcium silicate, Microporous materials, Rubber Material (Rubber, silicone, Silicone sponge, etc.), etc.

    Seit 2009 ist der Betrieb nach der ISO9001 zertifiziert, aktuell lt. Normenrevision 2015.
