Bands

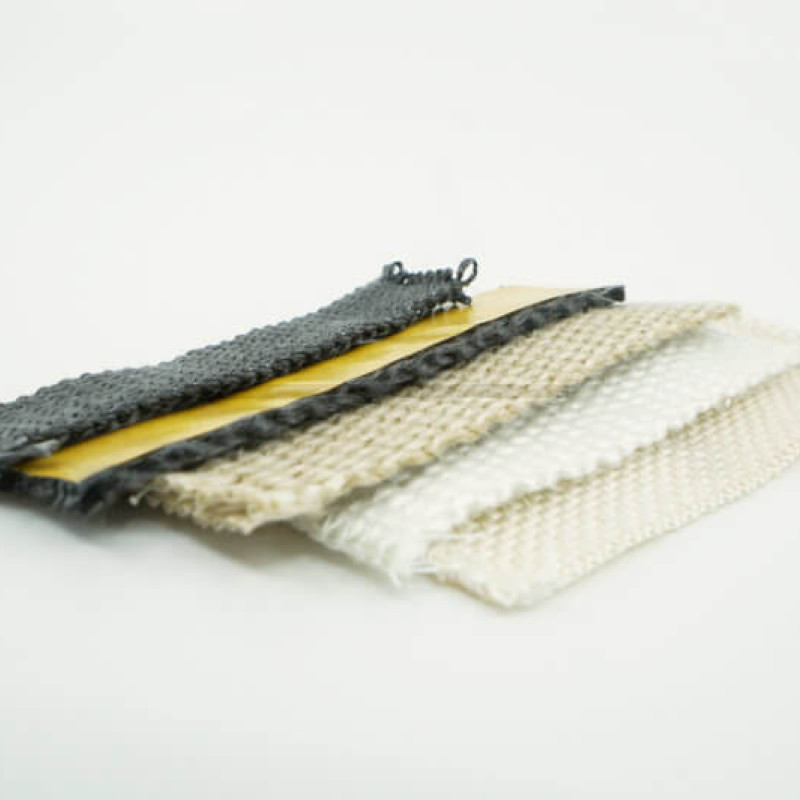

Woven fabrics and tapes with fixed selvedges are woven in different widths and materials for application temperatures up to 1260°C.
- material
- E-Glass fiber | HT-Glass fiber | Continuous filament silk fiber | Earth alkaline silicate fiber | Silicate staple fiber | Aluminium silicate fibre
-
Temperature resistance
Max. Application temperature, depending on material, up to 1260°C.
Thermal conductivity
Low thermal conductivity, non-flammable materials.
Stable & Durable
Chemical resistance, mechanical stability and flexibility.
CHARACTERISTICS
Woven fabrics and tapes with fixed selvedges are woven in different widths and materials for application temperatures up to 1260°C. Depending on the weave pattern and the thickness of the warp and weft thread, there is a wide range of different thicknesses. Conductor tapes with openings of approx. one third of the width are also available. All our tapes are also available self-adhesive or with various special coatings. For applications with high stretch and springiness, knitted (ladder) tapes can also be produced.
Depending on the application and temperature, various materials are available - See Technical details.
Benefits
- Temperature resistance
- Max. Application temperature, depending on material, up to 1100°C
- Low thermal conductivity
- Mechanical stability
- Non-flammable
- Different dimensions (width & length)
- Flexibility
- Chemical resistance
- Various finishes (graphitized, siliconized,...)
EQUIPMENT
All fabrics can be offered with various coatings or equipment:
- silicone
- PTFE
- graphite
- polyurethane
- div. HT (high temperature) equipments
- Cut Resistant Equipment
- Self-adhesive coating
- preshrunk
- Etc.
Depending on customer requirements, different dimensions, widths and thicknesses can be produced.
TECHNICAL DETAILS
Produkt | Artiicle KS Kaldera 550 KS Kaldera 750 KS Kaldera 1000 KS Kaldera 1050 KS Kaldera 1100 KS Kaldera 1260 material E-glass fiber HT-glass fiber HT-glass fiber Continuous filament silicate fiber Earth alkaline silicate fiber Silicate staple fiber Aluminium silicate fibre Dye White Blue White, Ivory Green White White Max. Application temperature 550°C 700°C 1000°C 1050°C 1000°C 1260°C Melting point 1200°C 1200°C 1550°C 1260°C 1550°C 1790°C Fire behaviour Non-flammable Non-flammable Non-flammable Non-flammable Non-flammable Non-flammable Chemical resistance Good Good Good Good Good Good TESPE Tenute Speziali
