Packs

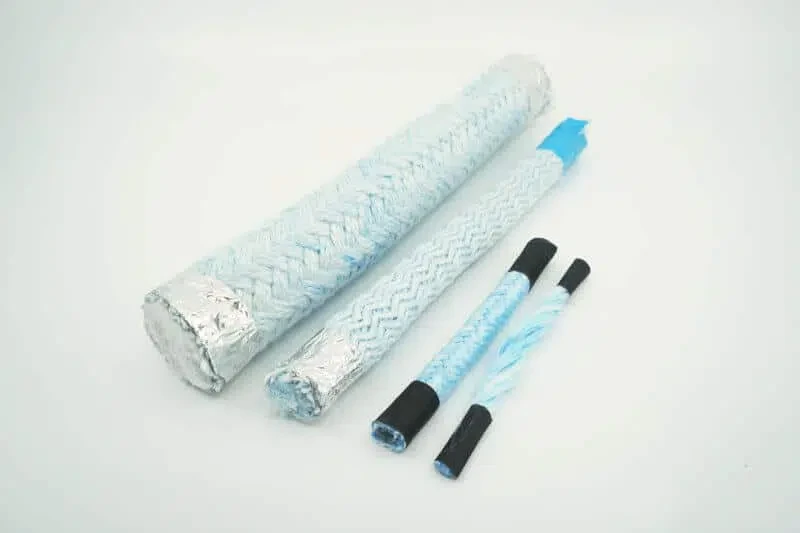

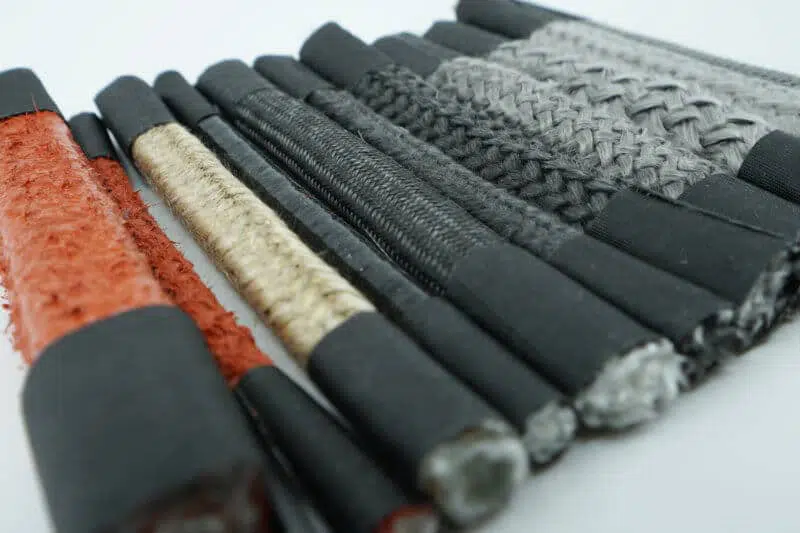

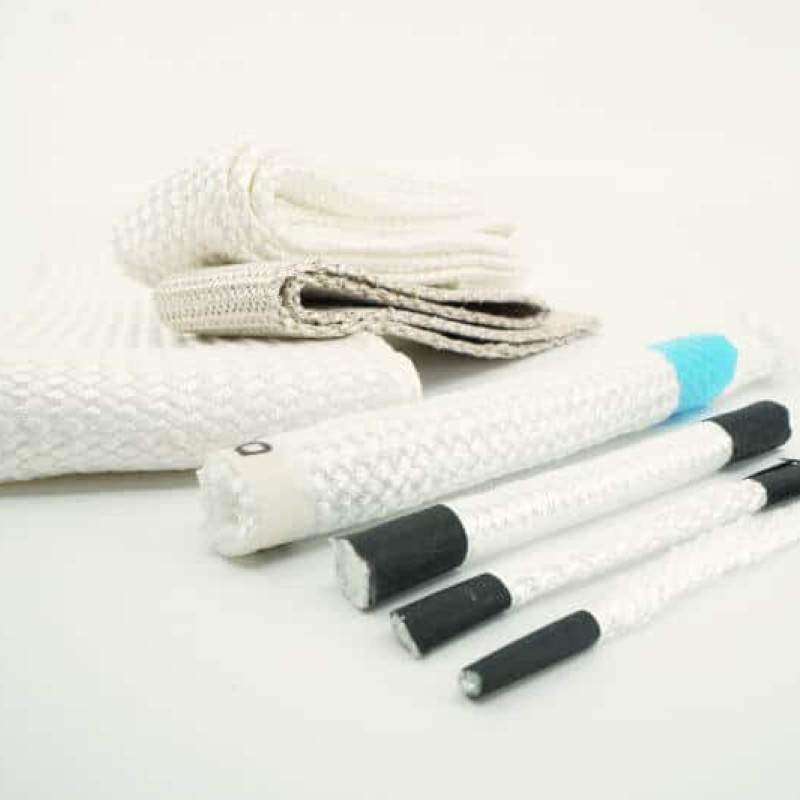

Tightly braided packings are available with round, square or rectangular cross-section. All variants (knitted or braided) can be impregnated with PTFE, graphite or other special products.
- Material | Application temperature
- Kaldera 550 | Kaldera 750 | Kaldera 1000 | Kaldera 1050 | Kaldera 1100 | Kaldera 1260
-
Temperature resistance
Max. Application temperature, depending on material, up to 1260°C.
Thermal conductivity
Low thermal conductivity and good electrical insulation properties.
Stable & Durable
Good dimensional stability and good chemical resistance.
CHARACTERISTICS
Tightly braided packings are available with round, square, or rectangular cross-sections. All variants (knitted or braided) can be impregnated with PTFE, graphite, or other special products.
Depending on the application and temperature, various materials are available - See Technical details.
Benefits
- High temperature resistance
- Max. Application temperature, depending on material, up to 1260°C
- Low thermal conductivity
- High mechanical stability
- Non-flammable
- Good dimensional stability
- Good flexibility
- Good electrical insulation properties
- Good chemical resistance
- Various finishes (graphitized, siliconized, vermiculite, ...)
- Wide range of products (fabrics, tapes, cords, packages, ...)
EQUIPMENT

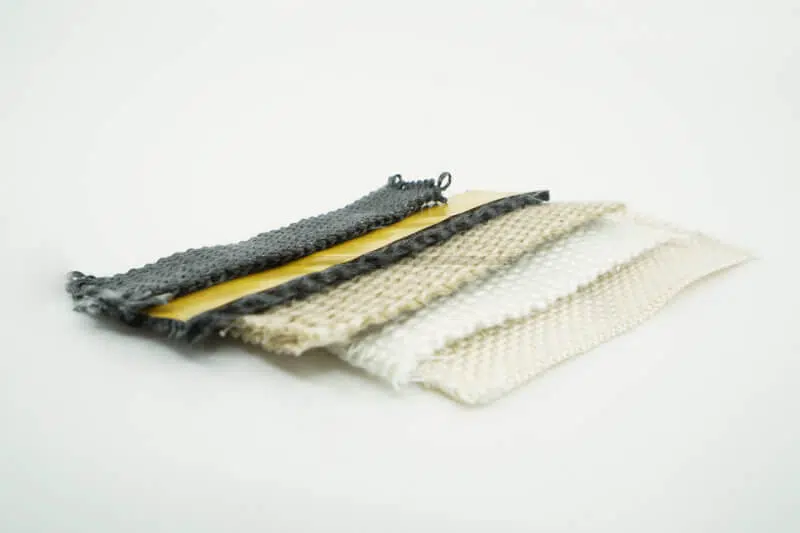

All fabrics can be offered with various coatings or equipment:
- silicone
- Vermiculite
- PTFE
- graphite
- polyurethane
- div. HT (high temperature) equipments
- Cut Resistant Equipment
- Self-adhesive coating
- preshrunk
- Etc.
Depending on customer requirements, different fabric thicknesses can be produced using various weave patterns and thicknesses of warp and weft.
TECHNICAL DETAILS
Produkt | Artiicle KS Kaldera 550 KS Kaldera 750 KS Kaldera 1000 KS Kaldera 1050 KS Kaldera 1100 KS Kaldera 1260 material E-glass fiber HT-glass fiber HT-glass fiber Continuous filament silicate fiber Earth alkaline silicate fiber Silicate staple fiber Aluminium silicate fibre Dye White Blue White, Ivory Green White White Max. Application temperature 550°C 700°C 1000°C 1050°C 1000°C 1260°C Melting point 1200°C 1200°C 1550°C 1260°C 1550°C 1790°C Fire behaviour Non-flammable Non-flammable Non-flammable Non-flammable Non-flammable Non-flammable Chemical resistance Good Good Good Good Good Good TESPE Tenute Speziali
Since TESPE was founded in 1993, they have specialized in the production of technical textiles and industrial seals for high temperatures. We use the latest materials and production techniques to guarantee the highest quality and high performance across the entire product range.
An absolutely reliable technical-commercial partner and not just a simple product supplier, always using experience and professionalism to guarantee the best consulting services, technical support, punctuality and competitiveness.
Textile assortment

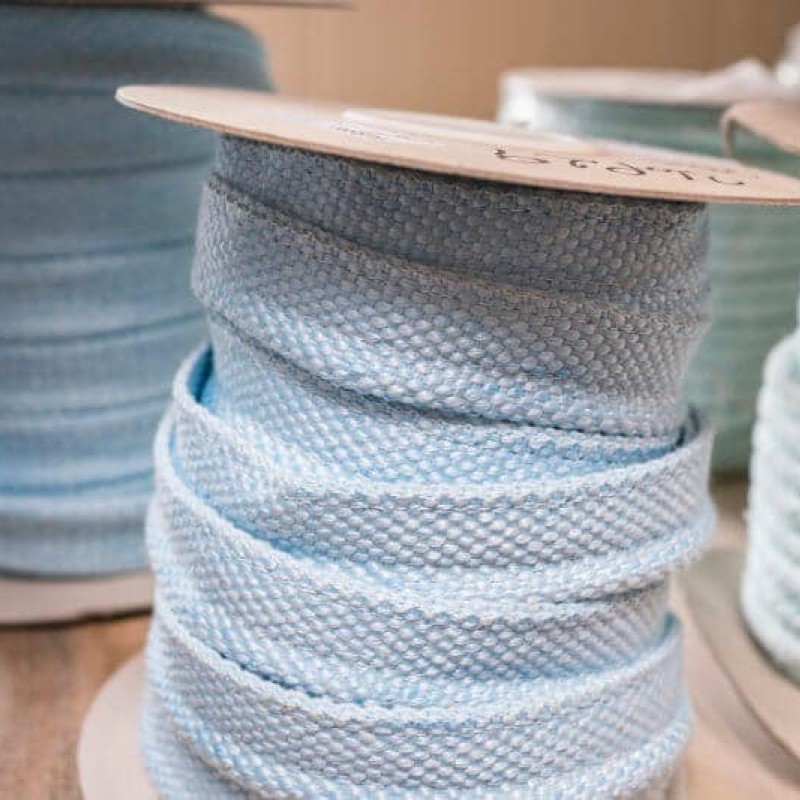

Bands
