GTPS 350 Paper
KS GTPS350 complements our range of technical papers, it combines the best of both worlds, the resistance of a high quality E-glass fibre paper to high temperatures and the excellent sealing properties of a silicone-based elastomer.
-
Temperature resistant
Applicable in the temperature range from - 60°C to 350°C (short term 540°C).

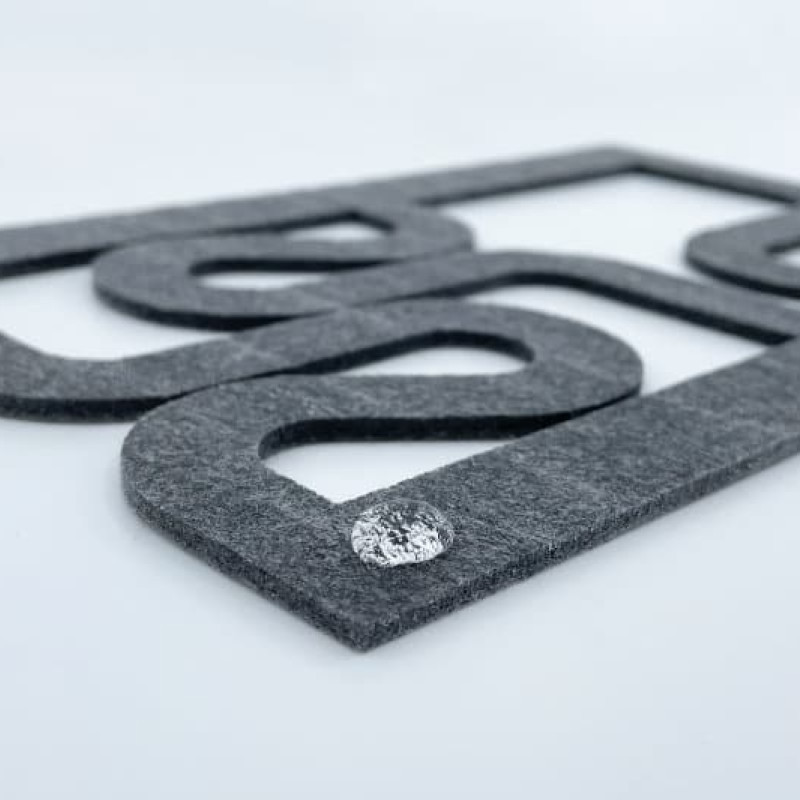

Water repellent
Water repellent and resistant to heat, weather, light, ozone.
Sealing properties
Excellent sealing properties due to the silicone-based elastomer.
CHARACTERISTICS
KS GTPS350 complements our range of technical papers, it combines the best of both worlds, the resistance of a high quality E-glass fibre paper to high temperatures and the excellent sealing properties of a silicone-based elastomer. As a hydrolysis-resistant material, the material can be used particularly well in applications where high condensate resistance is required. KS GTPS350 is water-repellent, the embedded impregnation prevents the medium from penetrating the fiber material.
Benefits
- non-marking, water repellent
- odourless and tasteless
- physiologically harmless
- excellent insulating properties
- Resistant to heat, weather, light, ozone
- Resistant to ageing in water (including seawater), oils and greases, weak acids and alkalis, heat and cold, salt solutions, petrol, chlorinated hydrocarbons, water vapour.

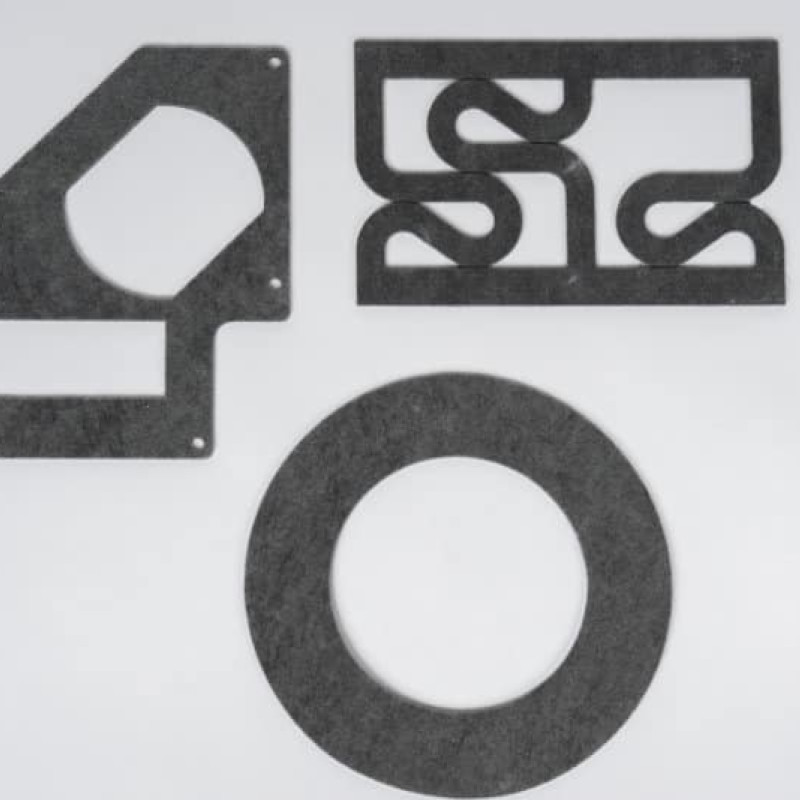

APPLICATION
Burner flange gasket
Igniter seal
Inspection cover gasket
Suction draught gasket
TECHNICAL DETAILS
Physical Properties Strength Nominal 3,2 mm Basis weight 760 g/m² (/+/- 10%) density 250 kg/m³ (+/- 10%) Temperature range 60°C bis + 350°C (Kurzfristig + 540°C) colour Grey/Black -
KS Kneissl & Senn Technologie
KS Kneissl & Senn Technologie GmbH has been producing insulation materials and seals for a wide variety of applications up to a temperature range of 1600 ° C since 2001. A diverse machine park (CNC 5-axis milling, plotting, punching, sewing, water jets, vacuum forming, etc.) enables us to do a variety of things Materials in shape for you bring to. The main materials include materials such as: glass fibers, Aramid fibers, mineral fibers, Biosoluble fibers, Ceramic fibers, silicate fibers, Vermiculite, Calcium silicate, Microporous materials, Rubber Material (Rubber, silicone, Silicone sponge, etc.), etc.
Seit 2009 ist der Betrieb nach der ISO9001 zertifiziert, aktuell lt. Normenrevision 2015.
