Vermiculite slabs | VIREboard

Our VIREboard vermiculite boards with a density of 375-700 kg/m³ and a maximum application temperature of 1100 °C are often used in fireplaces and boilers.


TEMPERATURE RESISTANCE
1100 °C KFT
MATERIAL
Vermiculite
PRODUCT TYPE
plates
density
375 kg/m³ | 475 kg/m³ | 600 kg/m³ | 700 kg/m³
Strength
10mm | 15mm | 20mm | 25mm | 30mm | 35mm | 40mm | 45mm | 50mm | 55mm | 60mm | 65mm | 70mm | 75mm | 80mm | 90mm | 100mm | 105mm
dimension
1000 x 610 mm | 1000 x 760 mm | 1260 x 1000 mm | 2440 x 1220 mm

Refractory Refractory

Subcategory: Refractory panels

Tags: Plates Vermiculite

Share:

  • Icon box checked

    Cost-oriented

    Technically excellent and cost-oriented solution.

    Icon box checked

    Nontoxic

    Light, non-toxic, fiber-free, odorless and acid-resistant.

    Icon box checked

    Refractory

    Depending on the product variation, application temperatures up to 1100 ° C.

    CHARACTERISTICS

    Our VIREboard vermiculite boards with a density of 375-700 kg/m³ and a maximum application temperature of 1100 °C are often used in fireplaces and boilers. Due to the good mechanical load capacity, the boards are also suitable for linings of the combustion chamber, insulation of doors and lids.

    Vermiculite panels are also used in the aluminum industry (also suitable for direct contact with aluminum) and the steel industry. Vermiculite sheets can be processed into different shapes. This is done exactly according to customer requirements and specifications.

    Benefits

    • different densities depending on the application
    • unclassified material
    • Cost efficient
    • Technically excellent
    • Light
    • Nontoxic
    • Fiber free
    • Odorless
    • Acid resistant
    • High temperature resistant

    Product variations

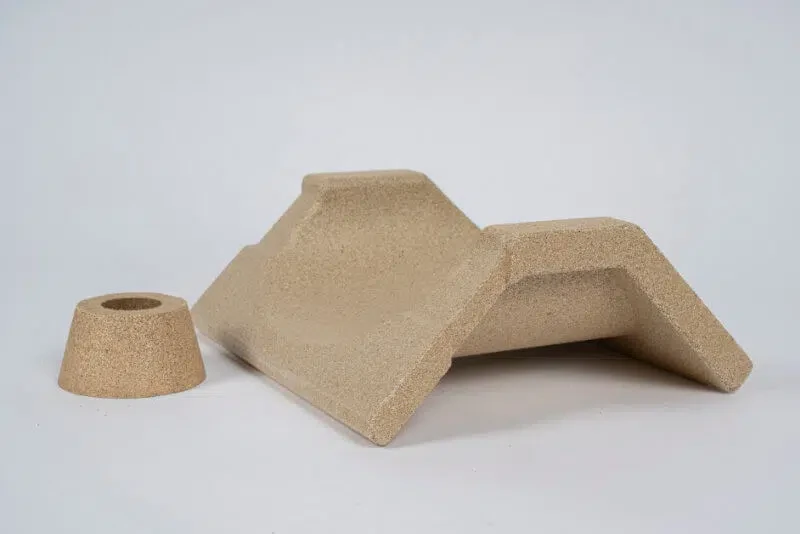

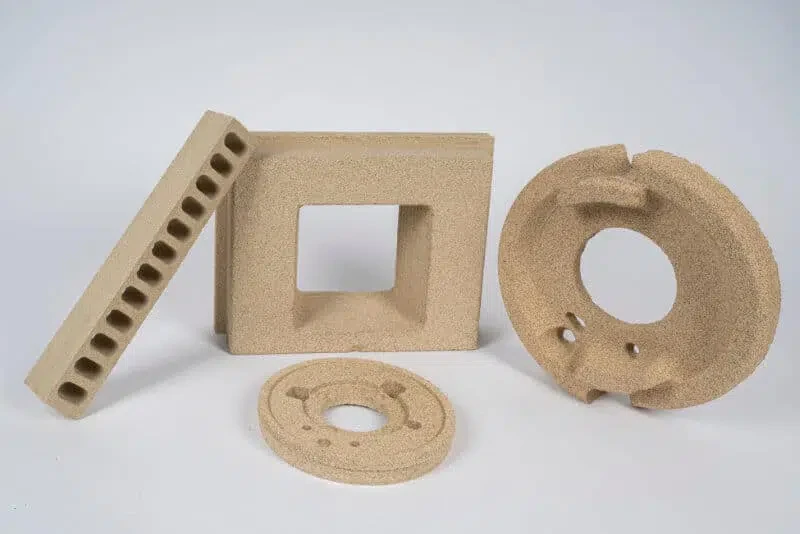

    Pressed parts
    CNC milled parts

    TECHNICAL DETAILS

    CHARACTERISTICS

    Application temperature 1100°C
    Schemltz temperature > 1300°C
    Standard panel thickness tolerance +/- 1mm
    Standard length / width tolerance +/- 2,5mm
    Linear post-shrinkage Aprox. 1%
    Coefficient of thermal expansion 11,0 x 10⁶ K¹
    Loss on ignition 1025°C: 7%
    HS Tariff No. 6809.90.00
    colour Sand

    CHEMICAL AVERAGE ANALYSIS

    SiO2 46,0%
    TiO2 0,7%
    Fe2O3 5,5%
    Al2O3 7,0%
    MgO 19,0%
    CaO 3,5%
    Na2O 0,2%
    K2O 10,0%
    KS VIREboard 375 KS VIREboard 475 KS VIREboard 600 KS VIREboard 700
    Volume weight 375 kg/m3 475 kg/m3 600 kg/m3 700 kg/m3
    Cold compressive strength 1,3 N/mm2 2,5 N/mm2 4,2 N/mm2 4,5 N/mm2
    Flexural strength 0,3 N/mm2 0,8 N/mm2 1,6 N/mm2 2,0 N/mm2
    Total porosity 85% 81% 76% 74%

    Thermal conductivity

    200°C 0,12 0,14 0,16 0,19
    400°C 0,15 0,17 0,18 0,20
    600°C 0,16 0,19 0,20 0,21
    800°C 0,19 0,20 0,22 0,22
  • Downloads

    Data sheet Vireboard VB1100-375

    Product properties, typical applications and availabilities.

    Download

    Datasheet Vireboard VB1100-475

    Product properties, typical applications and availabilities.

    Download

    Datasheet Vireboard VB1100-600

    Product properties, typical applications and availabilities.

    Download

    Datasheet Vireboard VB1100-700

    Product properties, typical applications and availabilities.

    Download

    KS Technologie product catalog

    Refractory | Seals | Foundry supplies | Conveyor chains | Chesterton

    Download

  • KS Kneissl & Senn Technologie

    KS Kneissl & Senn Technologie

    KS Kneissl & Senn Technologie GmbH has been producing insulation materials and seals for a wide variety of applications up to a temperature range of 1600 ° C since 2001. A diverse machine park (CNC 5-axis milling, plotting, punching, sewing, water jets, vacuum forming, etc.) enables us to do a variety of things Materials in shape for you bring to. The main materials include materials such as: glass fibers, Aramid fibers, mineral fibers, Biosoluble fibers, Ceramic fibers, silicate fibers, Vermiculite, Calcium silicate, Microporous materials, Rubber Material (Rubber, silicone, Silicone sponge, etc.), etc.
